Brief introduction

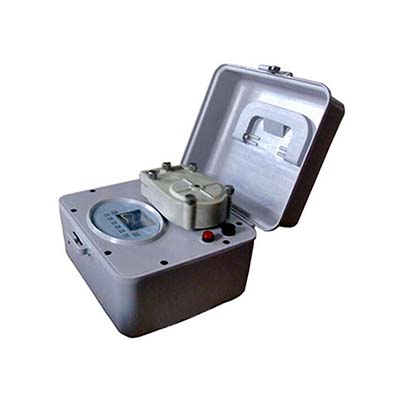

BC-2300 type ( portable mixed mining type ) automatic water sampler is the company launched for surface water and wastewater sampling , monitoring of water sources , to carry out investigations and total control of pollution sources dedicated environmental monitoring instruments . It uses common international peristaltic pump water from the MCU control. According to user needs , such as mixing ratio of water samples collected and mixed water samples , etc. , to meet the State Environmental Protection Administration issued HJ/T91-2002 " surface water and wastewater monitoring technical specifications " in the sampling requirements. BC-2300 uses a standard 12V battery work , field work when power is not enough, the car battery can be used instead. Is one of the essential instruments for environmental monitoring , supervision and monitoring stations at all levels of water pollution and environmental research department to carry out research work

Performance indicators

1. Sampling methods: sampling and other mixed
2. the number of water samples mixed N: 1 ~ 200 arbitrary.
3. storage container ( optional ) : 5 or 10 liters of polyethylene barrel.
4. sample volume error :. ± 5%
5. Sampling Repeatability : ± 5ml.
6. vertical sampling height : 8 m .
7. horizontal sampling distance : 50 meters , with a sampling tube automatic flushing .
8. system clock time control error :  1 ≤ 0.1% and 24 ≤ 30S.
9. pipeline system tightness :. ≤-0.05MPa.
10. hours of continuous operation MTBF (MTBF): ≥ 3000h / times.

11. Insulation resistance :> 20MΩ.
12. Large color touch screen 2.8TFT entire Chinese menu , man-machine dialogue , the need for human intervention when both Chinese Hou tips .
13. software lock that protects the instrument setup program will not be modified.
14. Working temperature :. -5 °C to +50 °C.
15. Power :. BC-2300 ( DC12V built- in lithium battery )
16. Dimensions :. BC-2300 (300mmX290mmX220mm) 17. Weight :. 5.5kg, light, beautiful .

18. peristaltic pump flow characteristics :. 3.7L/min, pump tube diameter 10mm, high strength medical silicone tube
