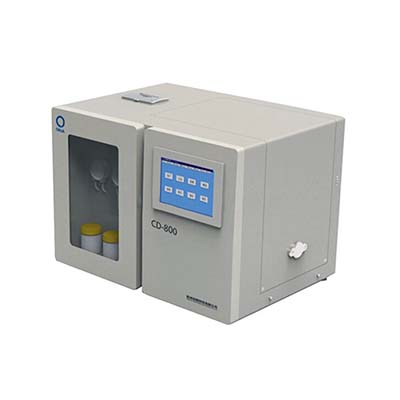

Brief introduction

Through the combustion furnace of high-performance full combustion at high temperature oxidation catalyst will sample decomposed into carbon dioxide and water, remove after through the condenser cooling water vapor, carbon dioxide non-dispersed infrared detector (NDIR) is used to test, to determine the content of total carbon TC sample; Through acid reagent inorganic carbon in the sample of the decomposed into carbon dioxide and water, remove after through the condenser cooling water vapor, carbon dioxide non-dispersed infrared detector (NDIR) is used to test, to determine the content of total inorganic carbon in the sample of TIC. Total organic carbon TOC = TC - TIC. Application: apply to the pharmaceutical industry cleaning validation, tap water, surface water, sewage and industrial waste water in rivers and lakes chemical water, clean water, cooling water, recycled water, etc.)

Features

1. The human interface, 7 inch touch screen, operation simple and convenient

2. The three sides are electronic condensation dehydration technology, to ensure that the dewatering efficiency of the whole system

3. With sufficient sensitivity and accuracy

4. Can choose according to the samples of different catalysts (such as CeO, Pt, CuO) and set different temperature, the highest temperature can reach 1100 ℃,

5. Testing curve in real time, more intuitive

6. Liquid sample automatically into the precision of electromagnetic metering pump, ensure the accuracy and stability of the sample quantity

7. real-time self monitoring of temperature, pressure and traffic flow

8. inorganic carbon tank is designed with a heating device, eliminate peak tailing, shorten the time of sample determination.

9. built-in needle type printer, reduce the occupancy of space

10. password protection

11. optional online module, on-line monitoring

12. optional automatic sampling instrument, unattended, save manpower and time

Technical parameters

The principle of high temperature oxidation of -NDIR is analyzed.

Can detect items: TC, IC, NPOC, TOC

TOC detection range: 0.050 ~ 35000mg/L

Detection accuracy: 0.050mg/L

Error: less than 5%

Sample quantity:20 ~ 1000 ml

Analysis time: 3 ~ 8min

Repeatability error: less than 3%

Zero drift: less than 2%/D

Span drift: less than 2%/D

Acid reagent: phosphoric acid solution

Carrier gas: pure oxygen (more than 99.999%)

Power requirements: 220V power supply AC less than 10% 50Hz (reliable grounding)

Power: 800W
