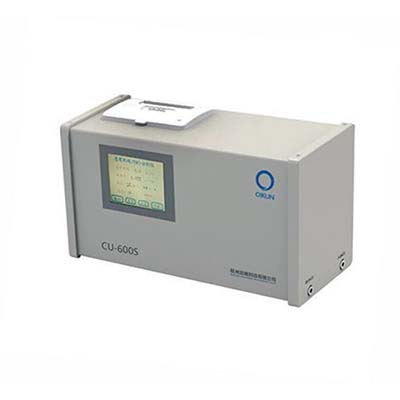

CU-600S online total organic carbon TOC analyzer

Introduction :

CU-500S online total organic carbon TOC analyzer as following application:

pharmaceutical industry water system on-line monitoring

The preparation of semiconductor industry and wafer processing system

Power plant deionized water preparation process

External injection device, can be used in the pharmaceutical industry, semiconductor industry, power plants, scientific research units, such as laboratory samples offline testing

Features:

High precision, low detection limit

3.5 -inch touch screen, human interface, simple operation

Can detect electrical conductivity, the temperature at the same time, multiple parameters displayNo carrier gas and reagents, simple maintenance, low cost

Five years  data storage, query by day

Built-in stylus printer, reduce the occupied space

Can be an external 4-20mA

Technical parameters:

TOC detect range:0.1~1500.0ug/L

Conductivity detection range:0.055uS/cm~6.000uS/cm

Detect item:TOC Conductivity temperature

TOC detection precision:0.1ug/L

The accuracy of error:≤±5%

Repeatability error:≤3%

zero drift:±2%/D

Span drift:±2%/D

Response time:≤15min

Sample temperature:0~100℃

Sampling method:Water pressure

Environment temperature:0~60℃

Relative humidity:≤90%

Power supply:220V AC≤±10% 50Hz

Power :60W

Size:30.5cm*12.6cm*16.8cm

weight:6Kg
