CW-700 total organic carbon analyzer TOC analyzer for water quality monitoring

Product Item: szjc002
Category: Water quality testing equipment
Views: 848
Supply Ability:20/month
Port:SHENZHEN
Model Number：CW-700
Payment Terms：T/T ，western union， paypal

PRODUCT DETAIL

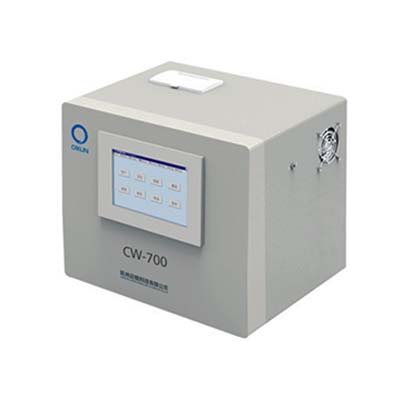

CW-700 total organic carbon analyzer TOC analyzer

Introduction

CW-700 total organic carbon analyzer could a following application:
Deion water samples like Injection water, purified water, etc
The pharmaceutical industry cleaning validation
Tap water, surface water
Chemical water (clean water, cooling water, recycled water, etc.)
For scientific research lab

Fundamentals

Subtraction: The samples by UV persulfate decomposed sufficiently oxidized into carbon dioxide and water, the dehydration condensation of the carbon dioxide measured by non-dispersive infra-red detector (NDIR), total carbon in the sample to determine the content of the TC; agent via an acid decomposition of inorganic carbon in the sample carbon dioxide and water, dehydration condensation, with a non-dispersive infrared carbon dioxide detector (NDIR) measurement, the sample to determine the TIC of the total inorganic carbon content; TOC TOC=TC-TIC.
Direct method: First through the acid reagent inorganic carbon in the sample is decomposed into carbon dioxide and water to remove total inorganic carbon TIC; through UV persulfate sample decomposition of organic carbon into carbon dioxide and water, dehydrated condensed carbon dioxide by non-dispersive infrared detector(NDIR) measurement to determine the total carbon content in the sample of TOC.

Feature

7 "touch screen, simple operation is convenient
Three Test modes:TC,TIC,TOC,NPOC,In the same reactor
High air chamber, high concentrated reflection gold-plated infrared light source and high sensitive infrared detector, ensure NDIR superior performance;PPB level measurement data with enough sensitivity and accuracy
Precision of electromagnetic metering pump, ensure the accuracy and stability of the sample quantity
Temperature, pressure, flow rate at many points real-time self-monitoring function
Built-in stylus printer, reduce the occupied space
2 years of data storage, query convenient, and can according to the time period

Technical parameters:

Analysis method :Uv persulfate oxidation-NDIR detect principle
Detect item:TC,IC,TOC,NPOC
TOC detect range: 0.001~100.0mg/L
TOC detect precision : 0.001mg/L
TOC accuracy of error:≤±5%
Sampling volume:50~6000ul
Analysis time:3~8min
repeatability error:≤3%
Zero drift:≤±2%/D
Span drift:≤±2%/D
Test condition:
oxidizing agent:Sodium persulfate solution
Acid reagent:phosphoric acid solution
Carrier gas::high purity nitrogen(No carbon dioxide air)
Environment requirements
environment temperature:0~40℃
relative humidity:≤85%
Power supply
Power supply:220V AC≤±10% 50Hz
power:150W
Size :38cm*30cm*32cm
weight:20kg
