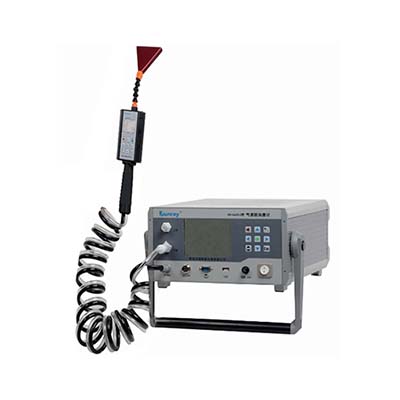

ZR-6010 aerosol spectrophotometer

Introduction

ZR-6010 aerosol photometer is designed according to Mie scattering theory. It can be used to detect leakage of highly efficient filters. The device can realize the detection of aerosol upstream and downstream. It can be applied to the clean room, laminar flow, biological safety cabinet, HEPA system, HVAC system, HEPA filter, vacuum filter, and the filter.

Features

1 long life laser light source;

2 high precision photoelectric multiplier tube detection;

3 can set PAO, DOP and other types of aerosols;

4 dot matrix color display, Chinese menu operation;

5 equipped with a dedicated handheld device to achieve control, display and sampling function;

6 large capacity data storage, real-time data storage;

7 more than the setting alarm sound and light alarm;

8 can be obtained by U disk or thermal printer to print historical data;

9 can print leakage rate and other monitoring data in real time;

10 through the special software, the sampling data can be imported into PC;

11 automatic fault detection.

Technical parameter

Sampling flow: 28.3L/min is better than 5%

Concentration detection range: 0.0001 ~ 125 ug/L

Detection of leakage rate: 0.0001% ~ 100%

Detection accuracy:  1% of reading

Detection repeatability: 0.5% of reading

Data storage capacity: 1000 groups

Dimensions (W x D x H): 340 x 400 x 170mm

Machine weight: about 8Kg

Power adapter: input AC100~240V 50/60Hz; output DC24V-5A

Power consumption: <100W
