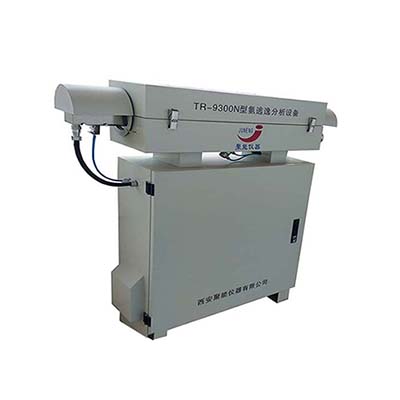

TR-9300N ammonia escape analysis equipment

Introduction

The TR-9300N ammonia escape online monitoring system uses high temperature heat extraction technology to continuously monitor the escape ammonia in the denitration process. The system consists of sampling and transmission unit, pretreatment and control unit, and analysis unit. Industrial emissions monitoring and process control, such as: coal-fired power plants, aluminum plants, steel plants, smelters, garbage power stations, cement plants and chemical plants, glass plants, etc.

The analyzer uses the principle of Tunable Diode Laser Absorption Spectroscopy (TDLAS) to measure the concentration of specific gases in the process gas composition, including NH3, H2S, HCL, HF, etc. The system has the characteristics of high sensitivity, fast response, no interference from background gas, non-contact optical measurement, etc. It provides a reliable guarantee for real-time and accurate reflection of the change of escape ammonia.

Technical Parameters:

Gas: NH3

Detection range: 0-20 ppm vol

Resolution: 0. 1ppm

Repeatability: ≤1%FS

Linearity: ≤1%FS

Response time: ≤10S (including sampling)

Drift: ≤1%FS

Preheating: 30min

Digital output: RS232/485

Analog output: 4-20mA maximum load 900Ω

Power supply: AC100-240V/47-63Hz; 3kW

Relay output: load capacity: AC/DC 4V/1A; concentration over limit alarm, transmission rate abnormal alarm, laser temperature abnormal alarm

Light path: 3 meters

Sample gas temperature ≤800 °C

Sample gas pressure: atmospheric pressure ± 5kPa

Sampling flow: 2-3L/min

Ambient temperature -10~55°C

Environmental pressure: 70kPa-120kPa

Purging air source: 0.4~0.6MPa compressed air

Protection level: IP65

Dimensions 1200mm × 850mm × 400mm

Weight: 120kg
