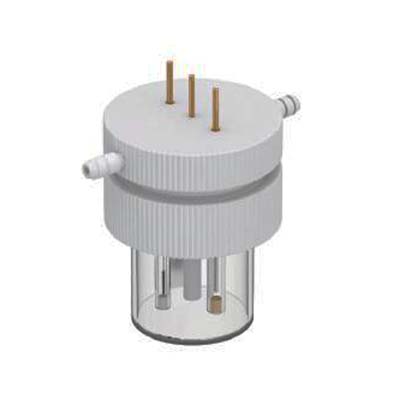

C018-1 relatively sealed quartz photoelectrochemical cell (side illumination)

Technical features:

The body of the electrolytic cell is welded by the all-quartz fusion method and refuses to stick.

The light transmittance of quartz in the electrolytic cell is above 95%

The cover of the electrolytic cell is polytetrafluoroethylene

The electrolytic cell can be equipped with air inlet and outlet devices

The reference electrode of the electrolytic cell generally selects a conventional reference electrode with a diameter of 6mm.

For the comparison electrode of this electrolytic cell, select an electrode with a rod diameter of 6mm.

The working electrode of the electrolytic cell can be selected with a rod diameter of 6mm or an electrode clamp

The electrolytic cell is relatively sealed system

The quartz sealing part of the electrolytic cell adopts a flange port design, and is sealed by a PTFE lid extruded sealing ring locked by a lock ring.

The electrode part of the electrolytic cell is sealed on the PTFE plug, and the sealing effect is achieved by squeezing the O ring by the sealing screw
