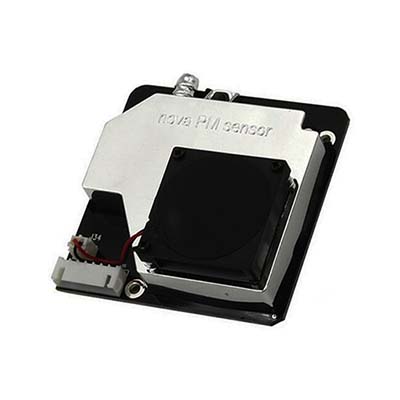

SDS011 Laser dust sensor

Brief introduction

SDS011 uses the principle of laser scattering in the air, can be obtained from 0.3 to 10 microns suspended particulate matter concentration, the data is stable and reliable; the built-in fan, digital output, high degree of integration.

Features

NO1.The accurate data: laser detection, stable, good consistency;

NO2.Quick response: scene change response time of less than 10 seconds;

NO3.Facilitate the integration: the serial output (or IO output can be customized), fan;

NO4.The high resolution: the resolution up to 0.3 micron minimum diameter ofparticles;

Working principle

Using laser scattering principle: when the laser beam through the detecting position particle  will produce weak light scattering, light scattering wave and particle in a particular direction is related to the diameter of the particle number concentration, through different waveform classification size statistics and conversion formula can get different size particles in real-time, calibration method to get mass concentration of unified with the official unit;

Technical parameters
