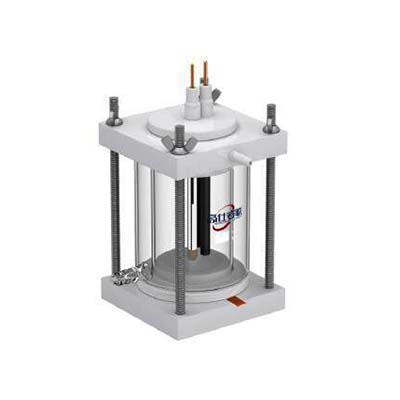

C011 coating evaluation electrochemical cell

Technical features:

1. The main material of the electrolytic cell is high borosilicate glass

2. The working electrode sheet of the electrolytic cell is a sheet-shaped working electrode, the sample installation is simple and convenient, easy to disassemble, and easy to handle

3. The electrolytic cell can be used for the electrochemical experiment before the sample is scanned by the electron microscope, or for the corrosion test of the coating during the corrosion test

4. The bottom of the electrolytic cell has a round hole with a fixed area of 1 square centimeter (the required size can be customized according to the requirements), and a sealing ring. After placing the sample in the round hole, tighten the four screws on the top of the cell body by adjusting. Make it compress the working sample to achieve a sealing effect

5. The conductive link of the working electrode of the electrolytic cell adopts the principle of sticking copper tape with the working sample to conduct sample conduction. The copper tape is convenient to use and easy to replace after corrosion, which can better ensure the conductivity.

6. The electrolytic cell is divided into single-layer and double-layer forms

7. The double-layer cell adds the function of a constant temperature water bath, and the inside of the electrolytic cell reaches a constant temperature effect by continuously passing constant temperature water into the jacket layer of the electrolytic cell
