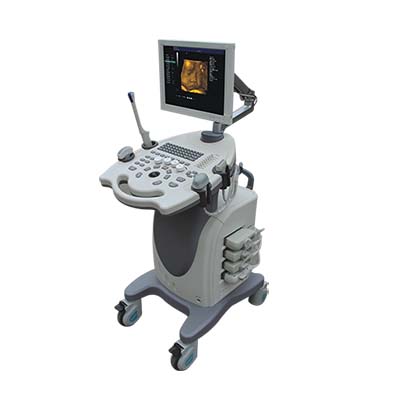

MDK-9800 Full Digital Color Doppler Ultrasound Diagnostic System

Introduction:

Equipment use: Abdomen, blood vessels, breast, obstetrics and gynecology, superficial structures, musculoskeletal, urology, pediatrics/newborns, small organs, heart, etc.

Technical Parameters

Monitor: 15-inch high-resolution color LCD monitor, no flicker, can be rotated up, down, left and right.

Operating keyboard: Silicone buttons, flexible and convenient operation.

Probe specifications:

Probe frequency: ultra-wideband probe, imaging frequency range 2.0MHz—12.00MHz

Both two-dimensional and Doppler (B/D): linear array B/PWD; convex array B/PWD

Puncture guide: optional probe can be equipped with puncture guide device (optional)

Abdominal convex array: frequency 2.0-5.0MHz, five-segment frequency conversion

Superficial linear array: frequency 6.0-12.0MHz, five-segment frequency conversion

Vaginal probe: frequency 5.0-10MHZ, five-segment frequency conversion

Phased array probe: frequency 2.0-5.0 five-segment frequency conversion

Maximum display depth: ≥30cm

Real-time ZOOM zoom function

Linear array probe sound beam deflection: ≥10°

Speed of sound focus: ≥4 focus, position continuously adjustable

Playback reproduction: large-capacity movie playback

Ultrasonic output power: visually adjustable

Gain adjustment: 8-segment TGC adjustment

Pulse Doppler:

Deflection angle: -2.5-10 adjustable in four sections

Pulse repetition frequency: 1.82KHZ-7.52KHZ adjustable

Spectrum flip

Triple synchronization

4.5 Wall filter ≥ 3 levels adjustable

4.6 Spectrum pseudo color ≥6 adjustable

4.7 Spectrum envelope function: multiple modes of real-time spectrum envelope are optional, and the system automatically analyzes and displays: PSV, EDV, AT, DT, RI, PI, SD, HR and other data

4.8 Edge enhancement ≥ 8 kinds of adjustable

4.7 Baseline≥7 adjustable

Color Doppler

Doppler probe and frequency: linear array: PWD; convex array: PWD

Wall filter: ≥3 levels, continuously adjustable

Display position adjustment: line scan scan interested image range: -10°～ +10°

Ultrasound image and medical record management system

The compression ratio of dynamic images can be adjusted, and it can be directly used on ordinary PC without special software.

Observe the image

Dynamic image acquisition and storage, quick "one finger" image review

You can embed the image in the medical record report and edit it

Dedicated measurement and analysis

Fetal growth curve

Store images and documents: U disk

Report storage, retrieval, statistics

Fully digitalized large-capacity hard disk ≥60G
