K0 Full Digital Color Doppler Ultrasound Diagnostic System for Visit
- PRODUCT DETAIL

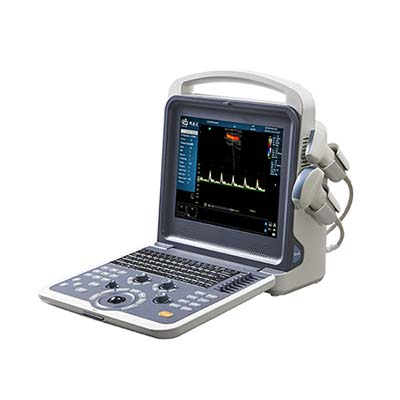

K0 Full Digital Color Doppler Ultrasound Diagnostic System
High Resolution Imaging System
Easy-operation Ergonomic Design
Better Optimize Image Quality
Smart and Light -Weight Design
Probes information
|
Probes |
5 Steps Multi-frequency |
Image |
|
3.5Mhz abdominal probe |
2.0, 3.0, 3.5, 4.0, 5.5Mhz |
|
|
7.5Mhz linear probe |
6.0, 6.5, 7.5, 10.0, 12.0Mhz |
|
|
6.5Mhz transvaginal probe |
5.0, 6.0, 6.5, 7.5, 9.0Mhz |
|
Technical specifications
|
Displaying mode |
B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW |
|
Signal processing: |
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
|
Image processing: |
THI Storage: 16G Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing |
|
General measurement |
Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular |
|
Normal measurement |
Volume, V3L, STD_S, Area Trace,Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist,MV, D HR, DA, D Trace |
|
ABD packages |
ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate |
|
OB Packages |
Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI |
|
Pelvic Packages |
Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle,
|
|
Urology packages |
Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle
|
|
Small Parts |
Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast |
|
Vascular |
Stenosis D, senosis A, Intima, Arterial, Venous |
|
MSK |
Distance, Area, Hip_Angle |
|
Scanning depth |
≥260mm |
|
Probe elements |
80 |
|
Gray |
256 |
|
Cine loop |
Automatically & manually |
|
Image storage format |
BMP, JPEG, PNG, DICOM(Option)
|
|
Input/output ports |
Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA |
|
Standard Configuration |
Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe connectors, User’s Manual, hard disk (SSD) |
|
Options |
6.5Mhz Transvaginal Probe, Trolley, Printers，Aluminum case |
|
Applicable Printers |
HP Laser Jet P2035 HP Laser Jet 1022 HP Laser Jet 1020 SONY UP-D898MD SONY UP-X898MD SONY UP-897MD EPSON L130 EPSON L805 |
