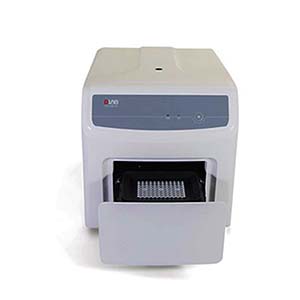

DLAB Accurate 96 Real-time Quantitative PCR

Introduction:

The Accurate 96 real-time fluorescent quantitative PCR system is based on the product design concept and manufacturing process of the global field of vision. Fluorescence and multi-color crosstalk between multiple channels and multiple samples, detection sensitivity, temperature uniformity and accuracy have reached international advanced level, supporting the application of all common QPCR detection modes.

Features:

1. Meet the simultaneous detection of 5 target genes in 96 samples

2. Effectively reduce multi-color crosstalk and edge effects without fluorescence correction

3. New optical scanning detection system-high sensitivity and high resolution

4. Innovative scanning method and time-resolved signal separation technology-fast and accurate

5. Unique zone temperature control and edge temperature compensation technology-stable and reliable

6. Unique appearance design and humanized operation software

7. Excellent quality, easy to use

Technical parameters:

 Sample size: 96

Excitation light source: 4/6 monochromatic high-efficiency LEDs

Reaction volume: 10-50μl

Testing device: PMT

Thermal cycle technology: Peltier

Detection mode: Time-resolved real-time scanning

Maximum temperature rising and falling rate: 6 ℃ / s

Excitation / detection range: 455-650nm / 510-715nm

Temperature range: 4-100 ℃

Number of fluorescence channels: 4/6 channels

Temperature accuracy: ± 0.2 ℃

Sensitivity: single copy gene

Temperature uniformity: ±0.2℃@60℃, ±0.2℃@95℃

Resolution: 1.33 times difference in copy number can be distinguished in single reaction

Temperature gradient range: 30-100 ℃

Dynamic range: 10 orders of magnitude

Temperature gradient range: 1-36 ℃

Supported dyes: FAM / SYBR Green, VIC / JOE / HEX / TET, ABY / NED /

TAMRA / Cy3, ROX / Texas Red, JUN, Mustang Purple, Cy5 / LIZ / Quasar
