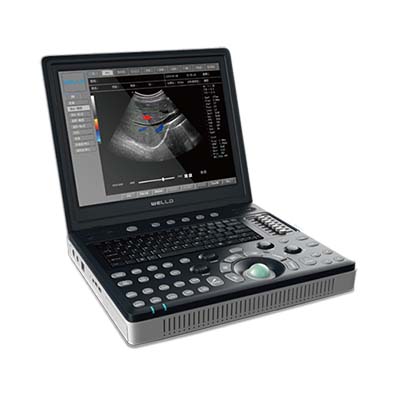

D6 Laptop Color Doppler Ultrasound

Specification Sheet

1, Main Application of the machine: for human ultrasonic diagnosis

2, Main technical specification and performance overview.

2.1  system overview

1)     Fully digital ultrasonic diagnostic system

2)     Fully digital multibeam beamformer

3)     Two-dimensional grayscale imaging

4)     ★Pulse Inverted Harmonic Imaging Technology supports all probes

5)     Color Doppler Imaging

6)     Power Doppler Imaging

7)     Speckle noise suppression technology

8)     Composite Imaging

9)     ★SPS cross mark line

10)   ★SAF focus linkage technology

11)    Smart pipe diameter adjustment function

12)    Smart needle size hint

13)    Puncture guiding function

14)   ★Global auto focus, no manual adjustment

2.2  Built-in integrated ultrasound image archiving and medical record management system for image archiving and editing.

2.3  built-in large-capacity lithium battery, supporting dual power supply of battery and DC power supply

3, Main technical specifications and requirements

3.1 General function of system

1)      High resolution color progressive scan LCD monitor, ≥15 inches

2)     ★ Built-in probe interface:≥ 2

3)     ★ Pre-conditions: According to the different inspection organs, preset the inspection conditions of the optimized image, and can be freely sorted, reduce the adjustment during operation, commonly requried external adjustment and combination adjustment, all are be displayed bby the organ graphical. All will be displayed by the organ graphical intuitively.

4)     product safety performance:

a)      GB9706.1、GB9706.9、GB10152

b)     sound output security: the system is with acoustic output power , mechanical index, thermal index display

3.2 probe specifications

1)     Probe effective array element: ≥128

2)     Frequency: Visually adjustable fundamental frequency ≥ 5

3)     Needle holder for special probe

3.3 two-dimensional imaging parameters:

1)     Gain range ≥ 255dB

2)     Gray curve: ≥ 21 optional

3)     Dynamic Range 20-320dB

4)     TGC curve segmentation 8

5)     Digital local zoom function

3.5 Color Doppler

1)      Multi-sound beam color Doppler imaging

2)     Gain range ≥ 255dB

3)     Display: B/CDI, B/CDI/PW

4)     Display position adjustment: Linear scan, interesting display range: -20° to +20° adjustable

5)     With the same screen and left and right double display B+COLOR function at the same time

3.6 puncture guidance function

1)     Puncture gun and puncture needle are optional

2)     puncture angle visually and adjustable

3)     puncture position visually and adjustable

3.7 Measurement, Analysis and Reporting:

1)     Basic measurements: distance, area, volume, angle, etc.

2)     Vascular measurement kits: special measurement kits and reports for bilateral blood vessels;

3)     ★ Support Chinese reports, report font size and display items can be changeable.

3.8 10 Image Management and Recording Device:

1)     Hard disk dynamic and static image storage, built-in hard disk ≥320GB;

2)     Clipboard display, 2 adjustable

3.9  Annotations and posture markers is good for  teaching promotion

3.10 Image Storage and (Film) Playback

1)     One-click ultrasound image  storage static and dynamic.

2)     Movie playback≥500 frames, image storage frame number is adjustable, 10 files are adjustable

3)     Customizable image storage device; image storage area, 3 levels adjustable
