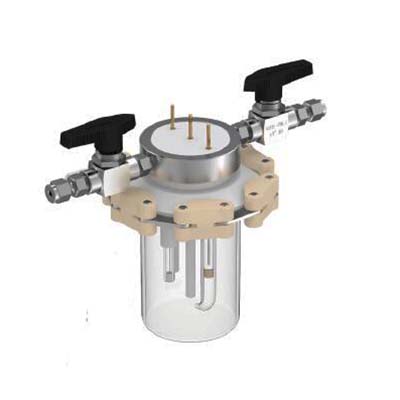

C017-2 Absolutely sealed all-quartz spectroelectrochemical cell (bottom light)

Technical features:

The electrode part of the electrolytic cell realizes the internal insertion and removal of the electrode through the earphone jack on the cover, so that the electrode system is absolutely sealed.

The electrode of the electrolytic cell needs to be purchased separately, but it must be matched with the cell.

The body of the electrolytic cell is welded by the all-quartz fusion method and refuses to stick.

The light transmittance of quartz in the electrolytic cell is above 95%

The cover of the electrolytic cell is polytetrafluoroethylene

The electrolytic cell can be equipped with air inlet and outlet devices

The reference electrode of the electrolytic cell generally chooses silver silver chloride electrode (diameter 3.8mm)

The contrast electrode of this electrolytic cell is a platinum wire electrode or a platinum sheet electrode with a diameter of 0.5 mm

The working electrode of the electrolytic cell is a glassy carbon electrode. The working electrode can also be replaced with a 3mm diameter gold disc, platinum disc or other electrode holders according to requirements

The quartz sealing part of the electrolytic cell adopts a flange port design, and is sealed by a PTFE lid extruded sealing ring locked by a lock ring.
