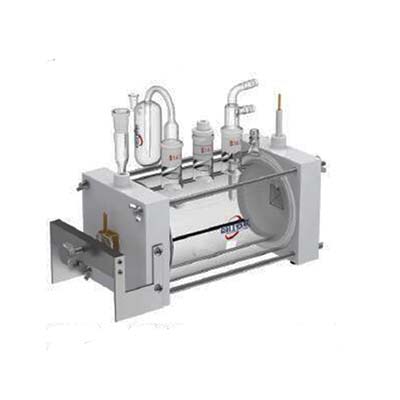

C010 plate corrosion test cell

Technical features:

1. Pool material: high borosilicate glass.

2. The working electrode sheet of the electrolytic cell is a sheet working electrode, and the sample is easy to install, dismantle and handle.

3. The side of the cell has a circular hole with a fixed area of 1 square centimeter (the required size can be customized according to the requirements), and an O-ring that can be sealed.

4. The conductive link of the working electrode of the electrolytic cell adopts the principle of gold-plated copper sheet extrusion operation sample piece to conduct electricity, and the copper plate gold plating has good corrosion resistance and aesthetics.

5. 316F stainless steel is used as the fixing bracket for the sample piece of the electrolytic cell, which is beautiful and corrosion-resistant.

6. In order to achieve better experimental diffusion effect, the placement position of stirrer is added under the cylindrical tank body. Only the stirrer is placed in the cell, and the cell body is placed on the magnetic stirrer for magnetic stirring.

7. The auxiliary electrode (counter electrode) of the electrolytic cell is matched with 20 * 20 platinum mesh electrode.

8. In order to make the experiment better, the reference electrode is equipped with a special salt bridge. Chloride ions should be avoided in the corrosion test, and saturated potassium nitrate solution is added into the salt bridge.
