Instrument Introduction

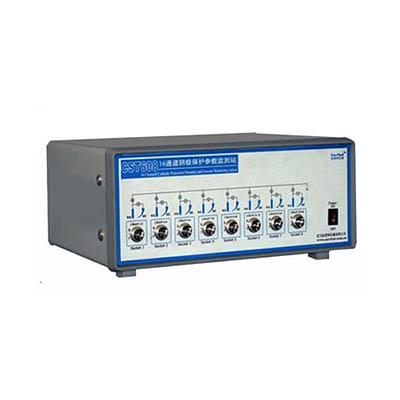

     CST608 multi-channel cathodic protection monitoring system using high input impedance voltage follower circuit and zero resistance ammeter circuit inside the instrument with high reliability siliconlab industrial control chip, and TI's precision data converters ADS1211, its highest resolution of 24bit / 10Hz, built- order low -pass filter can effectively eliminate high frequency noise into the measurement cell , the instrument also built-in EMI filter , you can prevent surge voltage shock damage to the equipment , security equipment in industrial environments normal use.

     Instrument capable of simultaneously measuring 8 protection potential and 8 protection current signal, and automatically switches based on the current size of the current range , and can ensure that the entire test data in the weak and the strong current area current region all have a good resolution. Device control firmware uses watchdog to improve the reliability of software is running , you can automatically recover after a failure protection program running . Instrument through the PC software settings ( via Isolated RS232 serial control ) .

 The main technical indicators

 Measurement channels : 16 ( 8 +8 potential current signals )

Input impedance : 1 × 1012

 Data Resolution : AD 24bit

Maximum data upload rate : 10Hz
Maximum measuring potential range : ± 5V
Potential Resolution : 10 (V
Current measuring range : ± 200mA
Minimum current resolution : 10pA

Current Range : 200mA ~ 200nA, 7 ranges

Power Supply: AC 220V/50Hz ± 10%, power consumption : <50w
Communication protocol: Isolated RS232, baud rate : 115200bps
Working conditions : Working temperature -10 °C ~ 40 °C, relative humidity 75 % or less , no strong corrosive gases in the air
Dimensions : 360mm ( W ) x300mm ( depth ) x140mm ( height )
Instrument Weight : 7Kg
