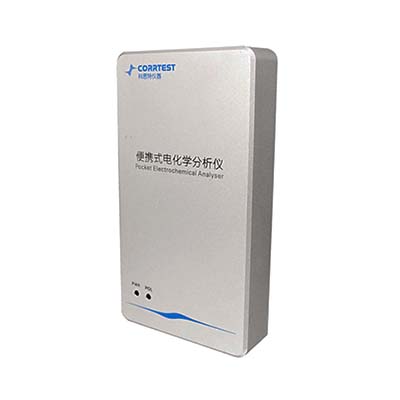

CS100 Portable Electrochemical Analyzer

Introduction

The CS100 portable electrochemical analyzer communicates with the computer using an optically isolated USB 2.0 interface and can be powered directly from the USB port without the need for an external power supply. The circuit uses a floating design that measures the electrochemical parameters of the grounding system without the need for an isolation transformer. The device is easy to install and plug and play. With excellent stability and precision, advanced hardware and well-functioning software, it provides an excellent research platform for scientists involved in energy, materials, life sciences and environmental protection.

Features

1.Small and lightweight, weighing only 220g.

2.The device is easy to install and easy to operate.

3.High precision, current resolution up to 100fA, measurement accuracy is 0.1% of range.

4.When measuring outdoors, use the USB port of the notebook to communicate directly, which is fast and portable.

5.The circuit adopts floating design, which can measure the electrochemical parameters of the grounding system without isolation transformer.

Functional method

Steady state polarization

Open circuit potential measurement (OCP), constant potential polarization (i-t curve), constant current polarization, potentiodynamic scanning (Tafel curve)

Voltammetric analysis

Linear Cyclic Voltammetry (CV), Linear Scan Voltammetry (LSV), Step Cyclic Voltammetry (SCV), Square Wave Voltammetry (SWV), Differential Pulse Voltammetry (DPV), Conventional Pulse Voltammetry (NPV), Conventional Differential Pulse Voltammetry (DNPV)

Current Detection

Differential Pulse Current Detection (DPA), Dual Differential Pulse Current Detection (DDPA)

Dissolution voltammetry

Linear stripping voltammetry (LSSV), stepwise stripping voltammetry (SCSV), square wave stripping voltammetry (SWSV), differential pulse stripping voltammetry (DPSV), conventional pulse stripping voltammetry (NPSV), conventional differential pulse stripping voltammetry ( DNPSV)

Battery measurement

Battery charge and discharge, constant current charge and discharge (GCD)

Extended measurement

Electrochemical noise

Technical Parameters

Potential: ±10V

Potentiostat rise time: less than 1ms, usually 0.8ms

Potential range: automatic range, ±2.5V, ±5V, ±10V

Potential resolution: 10μV

Current measurement accuracy: 0.1% of current range

Input bias current: <20pA

CV and LSV scanning speed: 0.00001V/s to 100V/s

Pulse width of DPV and NPV: 0.001 to 10s

Size and weight: 140*80*25mm, weight 220g

Current range: ±20mA

Potentiostat bandwidth (-3 dB): 1MHz

Current flow range: ±2nA to ±20mA, 8 range

Current resolution: 100fA

Potential control accuracy: 0.1% of range

Potential noise: <10mV rms

SWV frequency: 1 to 1 kHz

Minimum sampling interval of i-t: 1ms

Power supply: USB powered
