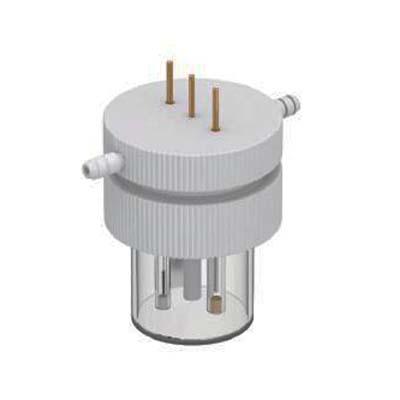

C015-2 small photoelectrochemical cell spectroelectrochemical cell

Technical features:

1. The cell body of the electrolytic cell is welded by quartz melting method, and adhesive is not allowed

2. The transmittance of quartz in the cell is above 95%

3. The cover of the cell is PTFE

4. The cell can be equipped with gas inlet and outlet device

5. The silver chloride electrode (diameter 3.8mm) is generally selected as the reference silver silver chloride electrode in the electrolytic cell.

6. The diameter of 0.5mm and the working electrode of glassy carbon electrode are 3mm

7. The working electrode of the electrolytic cell can also be changed according to the requirements

8. Replace it with a gold plate, platinum plate or other electrodes with a diameter of 3mm

9. The absolute sealing system of the cell

10. The quartz sealing part of the electrolytic cell is designed with flange, which is sealed by screwing the PTFE cover up and down

12. The electrode part of the electrolytic cell is solid through the earphone plug hole on the cover

13. The internal plugging of the electrode makes the electrode system absolutely sealed.

14. The electrode of the electrolytic cell needs to be purchased separately, but it must be matched with the cell
