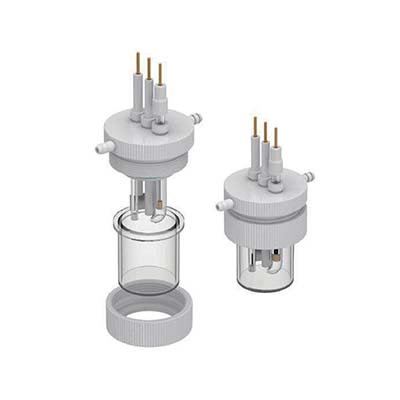

C015-1 (relatively sealed) spectroelectrochemical cell

Technical features:

1. The body of the electrolytic cell is welded by the all-quartz fusion method, and glue is rejected

2. The light transmittance of the quartz in the electrolytic cell is above 95%

3. The lid of the electrolytic cell is polytetrafluoroethylene

4. The electrolytic cell can be equipped with air inlet and outlet devices

5. The electrode of the electrolytic cell needs to be purchased separately

6. The reference silver silver chloride electrode of this electrolytic cell generally chooses silver silver chloride electrode (diameter 3.8mm), compared to platinum wire electrode diameter 0.5mm working electrode, glassy carbon electrode 3mm

7. The working electrode of the electrolytic cell can also be replaced with a gold disc, platinum disc or other electrode with a diameter of 3mm according to requirements

8. The electrolytic cell is relatively sealed system

9. The quartz sealing part of the electrolytic cell adopts an internal threaded port design, which is sealed by tightening a cover made of polytetrafluoroethylene.

10. The electrode part of the electrolytic cell is sealed on the PTFE plug, and the O ring is squeezed by the sealing screw to achieve the sealing effect
