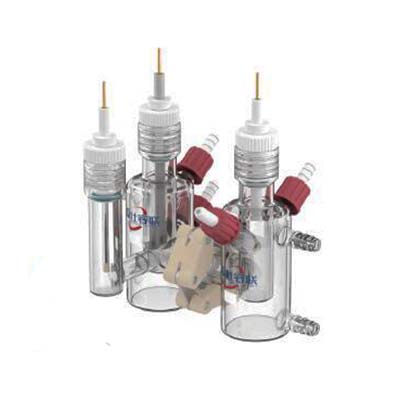

C008-10 3H replaceable membrane electrolyzer

Technical features:

1. The electrode of the electrolytic cell can be matched according to the need, and the electrode must be lengthened

2. The material of the cell is high borosilicate glass, and the single-layer cell has overhead layer design, which can effectively break the solution hiding.

3. The cell is usually used in three electrode system, and its volume is 10ml

4. The cell is divided into two parts: relative sealing and Jedi sealing. The cathode chamber and anode chamber are isolated by ion-exchange membrane. The two chambers are sealed and linked by chain, which is convenient to replace. The reference electrode and working electrode are in the same room, which can effectively reduce the R drop.

5. The relative sealing of the electrode part of the electrolytic cell is realized on the PTFE plug, and the sealing effect is achieved by squeezing the O-ring with the sealing screw.

6. The absolute sealing of the electrode part of the electrolytic cell is realized by inserting PTFE into the earphone on the top to realize the internal plugging of the electrode, so that the electrode system can achieve absolute sealing

7. The cell is equipped with exposure gas device which can ventilate under the liquid surface, and the atmosphere is carried out according to the different experiments.

8. No valve can be added to the electrolytic cell. All absolute seals are realized by quick connection. The diameter of PTFE pipe used for quick connection is 3mm
