Introduction:

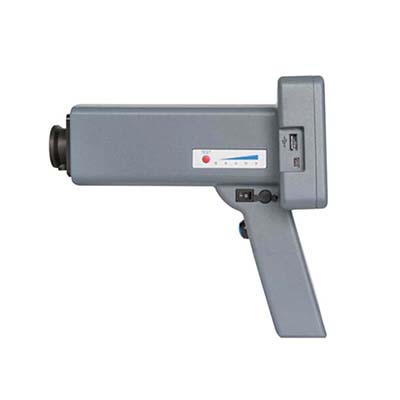

The NIRMagic 3500 handheld near-infrared spectrometer is suitable for fast, non-destructive, qualitative/quantitative detection of solids (fibers, sheets, granules, powders, etc.) in the field. The instrument is equipped with LCD touch screen, full Chinese operating system, wavelength range 900nm ~ 1800nm, light and compact, built-in battery, to meet the needs of on-site fast inspection use. It has been widely used in textile fibers, agricultural and sideline products, fine chemicals, and pharmaceutical testing.

Features:

1Embedded operating system, independent realization of spectral measurement, chemometric analysis, query results and other functions

2 Hand-held design, light and compact, built-in large-capacity battery, to meet the needs of rapid detection on-site

3 Optional measurement accessories to meet the needs of multi-modal sample testing

4 intelligent instrument has a self-check and calibration system, the user can understand the running status of the instrument in real time, to ensure the authenticity of the measurement results

5 Chinese operating system, easy to operate, no special training, users can easily control the instrument

6 Provides powerful spectral viewing, spectral processing, and statistical analysis of spectra

7 Integrated chemometric functions to achieve qualitative identification, quantitative prediction, spectral matching and other functions

solution:

1 product fidelity identification

2 Waste recycling sorting

3 Rapid classification and content detection of textile fibers

4 Quality analysis of agricultural and sideline products (moisture, fat, protein, etc.)

5 Product Quality Control and Protection (Pharmaceuticals, Chemicals, Agricultural Products, Wood, etc.)

Technical Parameters:

Name: NIRMagic3500

Wavelength range: 900nm~1800nm

Spectral resolution: <16nm

Analysis time: ≤5 seconds

Number of storage model groups: 99 groups

Simultaneous analysis of indicators: 12

Storage spectrum: >2000

Storage Analysis Results: >2000

Light source life: >10000 hours

Communication Interface: USB2.0

Ambient temperature: 5°C~40°C

Humidity: 5%~95%

Probe size: 40mm

Operating System: Embedded Control System

LCD screen: 4.3 inch

Storage space: 16G

Power supply: DC16.8V (built-in battery, maximum life of 8 hours)

Dimensions (length x width x height): 230mmX130mmX210mm

Instrument weight: 0.85Kg
