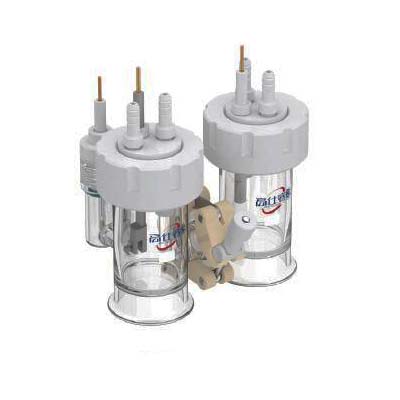

C008-1 3H replaceable membrane electrolyzer

Technical features:

1. Pool material: high borosilicate glass

2. The reference electrode and the working electrode are separated by the cell and connected by Lujin capillary, which can effectively reduce the R drop

3. The aperture of the Rujin capillary extending into the tip of the working electrode chamber is less than 0.2mm

4. Agar can be added into Lujin capillary to reduce the flow rate of electrolyte

5. The reference electrode chamber of the electrolytic cell adopts internal thread sealing CC, which must be sealed when using, so as to effectively avoid the leakage of liquid between the reference electrode chamber and the working electrode chamber due to the connector effect

6. The electrodes of the electrolytic cell can be matched according to the needs, and the distribution poles must be lengthened

7. The single-layer cell of the electrolytic cell is designed with overhead layer, which can effectively break the solution hiding

8. The electrolytic cell is a relative sealed electrolytic cell system. The anion and anode chambers are isolated by ion-exchange membrane, and the two chambers are sealed by chain to facilitate the replacement of diaphragm.

9. The inner core of the cell is made of 360 degree rotating polytetrafluoroethylene to make the electrode accurately correspond to the channel (generally, the electrode is parallel to the membrane)

10. The cell is equipped with aeration device which can ventilate under the liquid surface, and different shapes of aeration device are selected according to different experiments
